What Is an LED Display Module and Who Is It For?

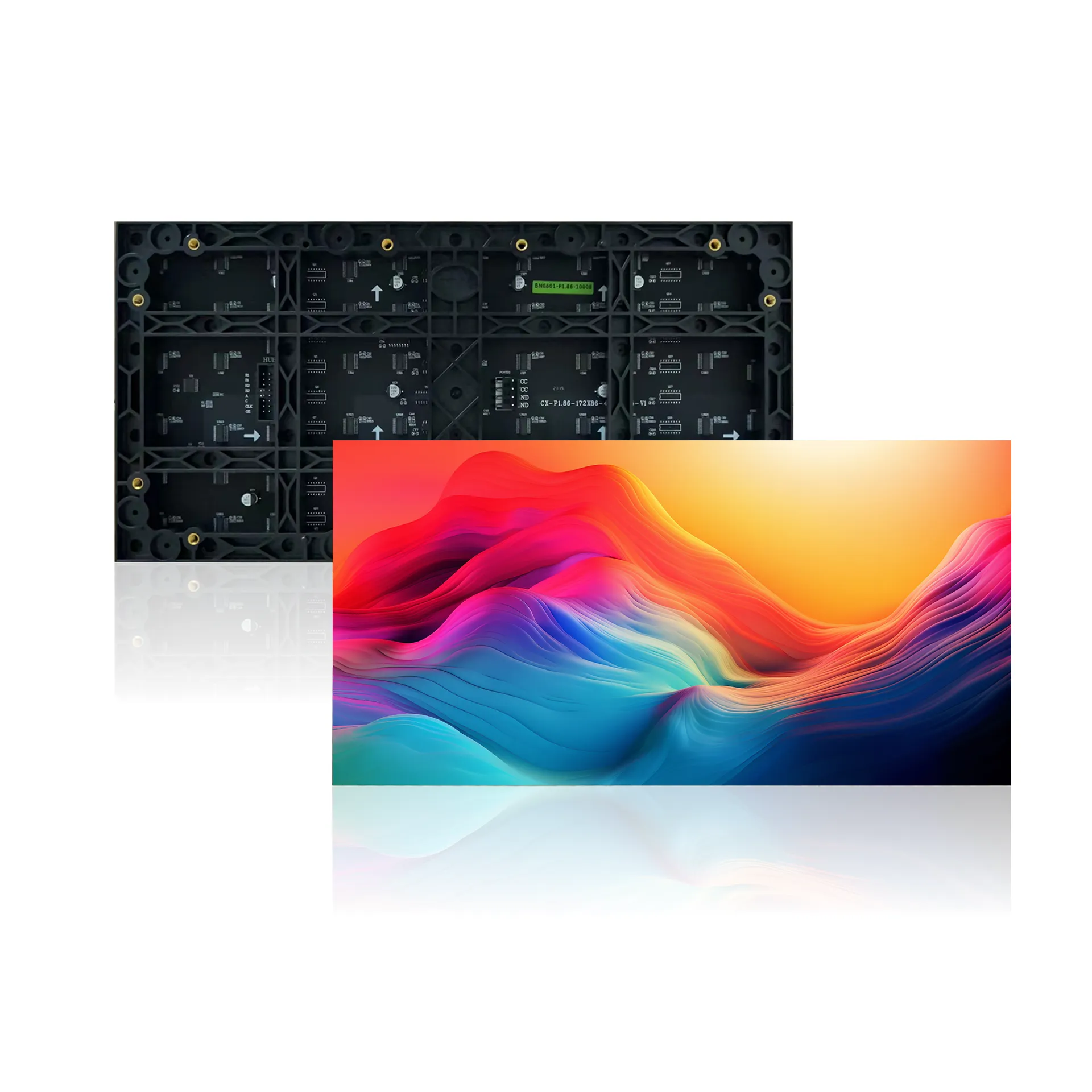

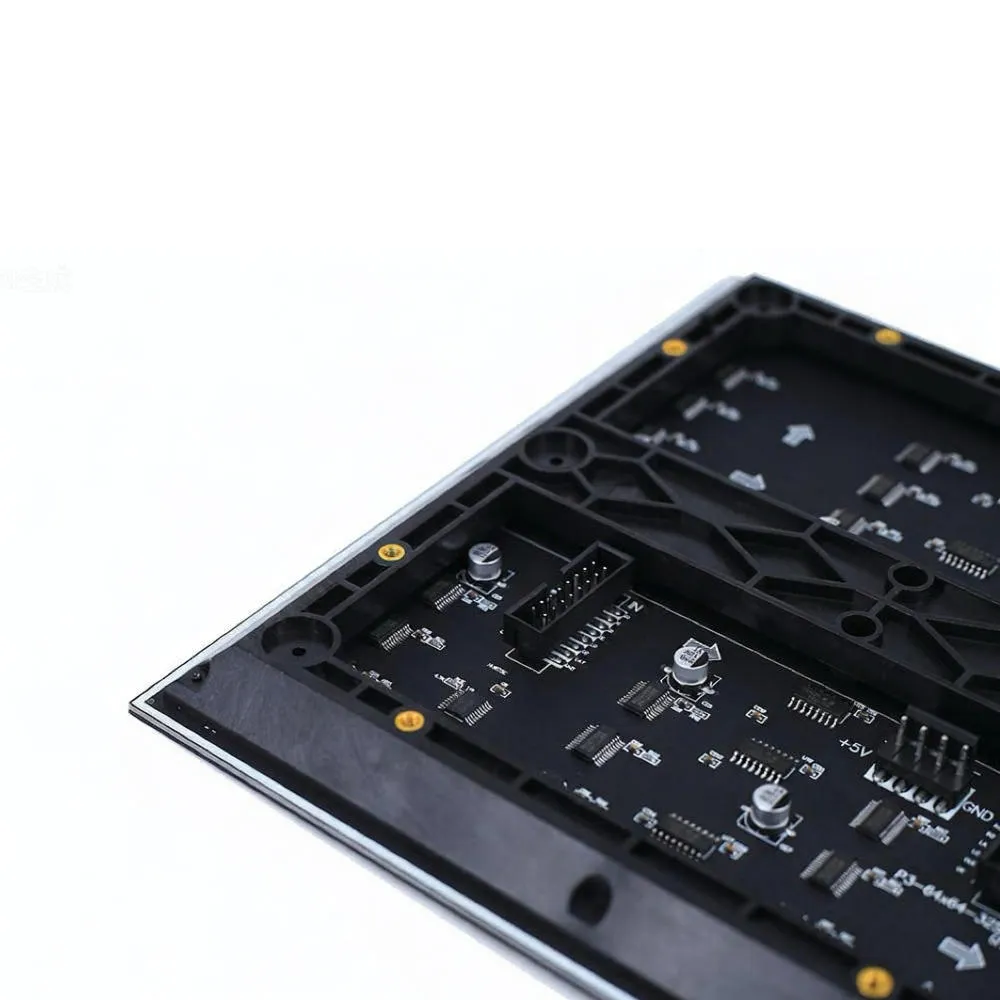

An LED display module is the basic building block of an LED screen. Each module integrates LEDs, PCB, driver ICs, data and power connectors, and mechanical fixing points. Multiple LED modules form a cabinet, and cabinets are assembled into complete LED video walls, billboards or stadium screens.
Why Choose Our LED Modules
We make LED modules for system integrators. We know what you need. Accurate specs. Good documentation. Reliable quality. Here’s what we offer.
Multiple Technologies
SMD, COB, GOB, HOB modules. Different technologies. Different needs. We have them all.
Wide Pixel Pitch Range
Pixel pitches from P0.9 to P20. Small pitch for close viewing. Large pitch for distance viewing. We cover it all.
Complete Documentation
Technical specs. Wiring diagrams. Installation guides. Troubleshooting guides. Everything you need.
Reliable Quality
Every LED module goes through 72 hours of intensive aging tests. We find problems before you do. That’s why our modules last.
Factory Direct Pricing
We’re the factory. We make the modules. We sell them directly. No middlemen. No markup. You get factory prices.
Future-Proof Design
Invest in solutions built for tomorrow, with the flexibility to grow and evolve with your needs.
Where Our Modules Are Used
System integrators use our modules to build displays for different applications. Here are some examples.
Indoor Video Walls
Conference rooms, control rooms, retail stores. Small pixel pitch. Low heat. Energy efficient.
- SMD modules: P1.2-P2.5
- COB modules: P1.5-P2.5
- Front service modules
Retail & Hospitality
High brightness. Weatherproof. Long lifespan. Large pixel pitch for distance viewing.
- SMD modules: P6-P20
- HOB modules: P6-P10
- High brightness modules
Rental Displays
Frequent setup and teardown. Impact resistant. Durable. Fast rigging.
- GOB modules: P2.97-P4.81
- SMD modules: P2.97-P4.81
- Lightweight modules
Curved Displays
Creative installations. Cylindrical displays. Custom shapes. Bendable modules.
- Flexible modules: P1.5-P4
- Thin and lightweight
- Magnetic front service
The Manufacturer’s Advantage: Why Our Modules Are a Better Investment
Not all modules are created equal. We build our components to a higher standard to guarantee performance, longevity, and a lower total cost of ownership for our partners.
Premium Components, Guaranteed
We use only top-tier components, including gold-wire encapsulated LEDs from Nationstar and high-refresh-rate driver ICs from MBI. This means better color uniformity, lower failure rates, and a longer lifespan.
Rigorous Quality Control
Every module that leaves our factory undergoes a strict quality control process, including color calibration and a 24-hour aging test, to ensure it performs flawlessly out of the box.
Guaranteed System Compatibility
Our modules are designed to work seamlessly with major control systems, including Novastar and Colorlight. We guarantee compatibility, making integration and repair straightforward.
Explore Our LED Display Module Categories
Find the perfect module for your specific application. Each category is engineered for optimal performance in its intended environment.

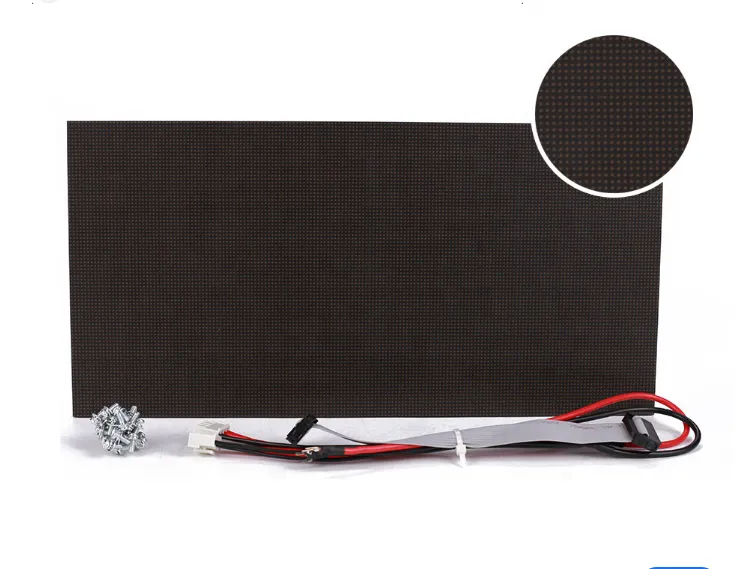

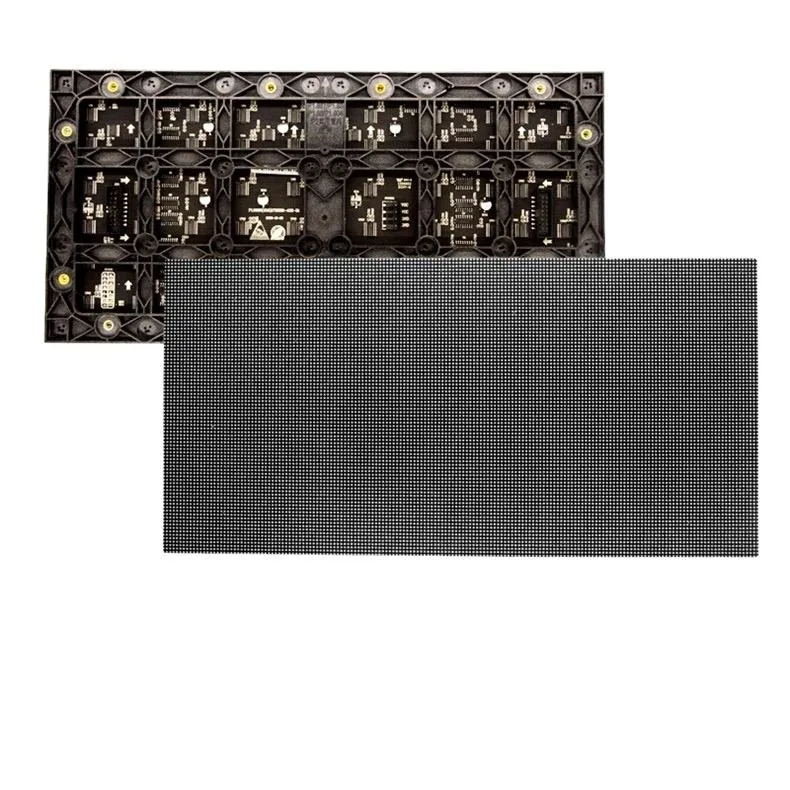

Indoor LED Module
Engineered for high-resolution and exceptional clarity at close viewing distances. Perfect for boardrooms, retail, and control rooms.

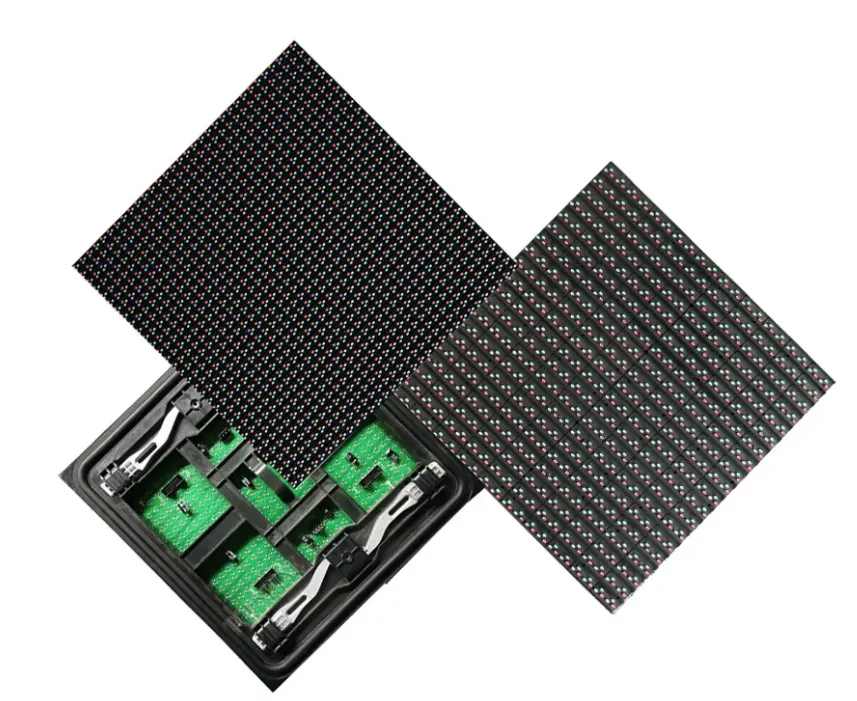

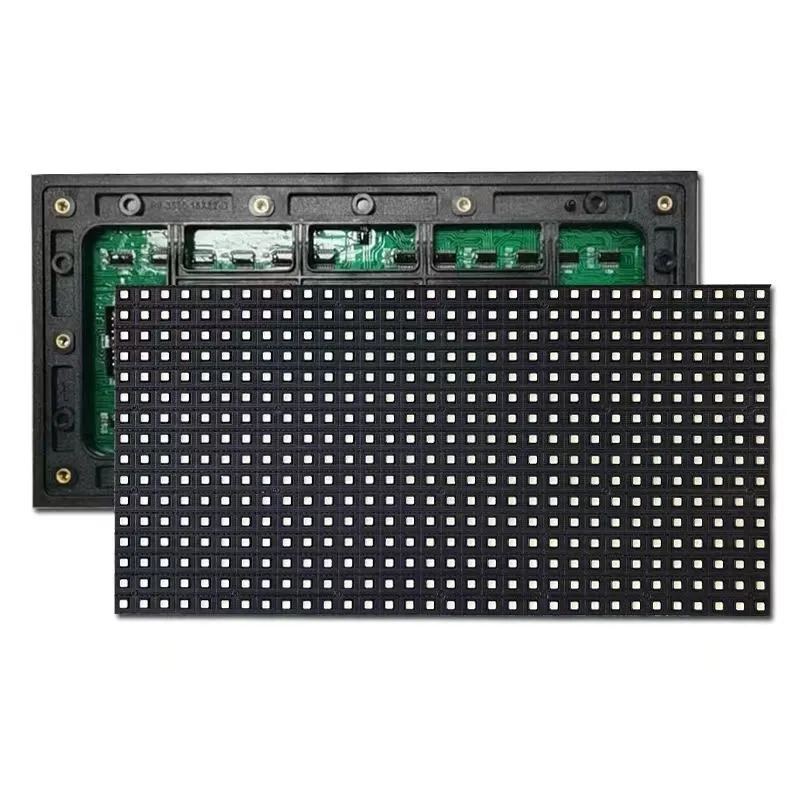

Outdoor LED Module
Built for high brightness and durability. IP65/67 rated to withstand the harshest weather conditions, ensuring 24/7 performance.

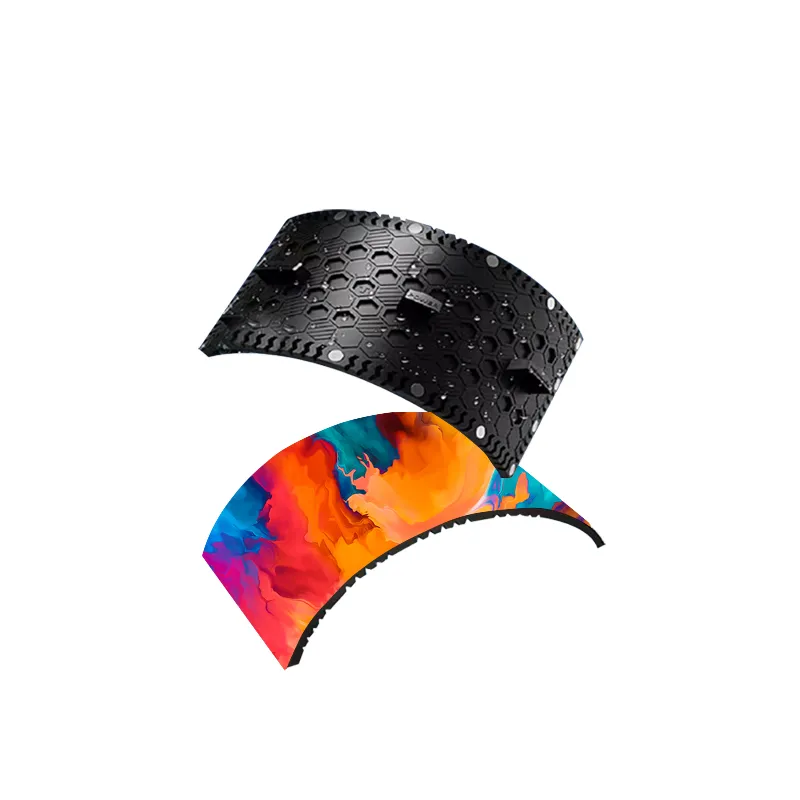

Flexible LED Module
Unleash your creativity. These modules can create smooth curves, wrap around columns, and form unique shapes for architectural and artistic installations.
Single & Dual Color DIP LED Module
Unleash your creativity. These modules can create smooth curves, wrap around columns, and form unique shapes for architectural and artistic installations.
Front & Rear Service LED Module
Designed for easy maintenance from either side.
COB LED Module
Dustproof, waterproof coating for high-traffic installations.
GOB LED Modules
5° bevel modules for 90° seamless corner displays.
Right-Angle LED Module
45° bevel modules for 90° seamless corner displays.
Key Features & Engineering Advantages
Our modules are not just components; they are a complete platform engineered for superior performance and reliability. We build key advantages into every module we manufacture, ensuring a better result for your project and a higher return on your investment.
Superior Image Quality
Our indoor screens feature a 3840Hz+ refresh rate, guaranteeing a smooth, flicker-free performance that looks perfect on camera.
- Vibrant Colors: We use tightly-binned, top-tier LEDs to guarantee exceptional color uniformity and a wide color gamut.
- Flicker-Free Performance: High-performance driver ICs with high refresh rates ensure a smooth, stable image that is perfect for on-camera use in broadcast studios or for recording events.
- Excellent Grayscale: Our modules maintain rich detail and color depth even at very low brightness levels, which is critical for control rooms and theatrical applications.
Built for Long-Term Reliability
A display is a long-term asset. We build our modules to last, even under demanding 24/7 operation.
- Advanced Heat Dissipation: Our multi-layer PCB design with optimized thermal management prevents premature aging and color degradation, extending the lifespan of the LEDs.
- Low Failure Rate: The combination of premium components and automated SMT manufacturing results in an extremely low failure rate, giving you peace of mind.
- Stable & Secure Connections: We use high-quality data and power connectors to ensure a stable, secure connection between modules, preventing signal loss or flickering.
Designed for Seamless Integration
We design our modules to make the job of system integrators and technicians easier.
- Guaranteed Compatibility: Our modules are designed for plug-and-play compatibility with major control systems like Novastar and Colorlight, eliminating guesswork.
- Standardized Dimensions: We adhere to industry-standard module and cabinet sizes, making it easy to design, build, and service video walls.
- Flexible Service Options: Many of our module series are available with front and rear serviceability, providing maximum flexibility for installation and maintenance.
How to Choose the Right Module: A Quick Guide
Discover how our comprehensive solutions empower your journey.
Discover how our advanced solutions can revolutionize your approach, providing efficiency and unprecedented growth.
Benefit from our team’s extensive knowledge and receive tailored advice to meet your unique challenges.
Our products are designed for easy integration, ensuring a smooth transition and immediate productivity.
How to Choose the Right Module: A Quick Guide
| Feature | Indoor Module | Outdoor Module | Flexible Module |
| Primary Use | Close-distance viewing | Long-distance, all-weather | Creative shapes, curves |
| Pixel Pitch | Fine (e.g., P1.2 – P3.9) | Large (e.g., P4 – P10) | Varies (e.g., P2.5) |
| Brightness | 600 – 1,200 nits | 5,000 – 10,000 nits | 800 – 1,500 nits |
| Protection | Standard | IP65+ Weatherproof | Standard |
How to Choose the Right LED Display Module
Selecting LED display modules is not only a price comparison. For professional LED screens, you must balance image quality, reliability, compatibility and total project cost. The steps below are how we guide most engineering partners.
Start by defining the installation environment clearly:
- Indoor LED modules focus on high resolution, comfortable brightness and fine image detail.
- Outdoor LED modules are built for high brightness, waterproof protection and structural robustness.
For semi‑outdoor or shop‑window LED displays, we can recommend suitable brightness levels and protection ratings based on your photos and site descriptions.
Pixel pitch and viewing distance are closely related. As a simple rule:
Minimum comfortable viewing distance (meters) is roughly equal to pixel pitch (mm).
- For 2–4 m viewing distance, consider P1.x, P2, P2.5 or P3 indoor LED display modules.
- For 5–10 m viewing distance, P4–P6 LED modules are typically a good balance of cost and clarity.
- For 10 m or more, P6–P10 LED modules often provide the best value for outdoor billboards and stadium screens.
If you share your site drawings, photos or basic dimensions, our engineers will calculate suitable pixel pitches and provide options.
For new LED screens, we can suggest proven combinations of LED modules and cabinet sizes such as 960×960 mm fixed cabinets or 500×500 mm rental cabinets.
For LED display module replacement on existing screens, compatibility is more sensitive. We usually need:
- Exact module size (width and height in millimeters).
- Clear photos of the front and back of the LED module.
- Close‑up photos of data/power connectors and fixing holes.
- Any labels or codes on the PCB or back cover.
Based on this information, we check whether we can supply a drop‑in replacement or recommend a structurally compatible alternative.
After confirming environment, pixel pitch and module size, we help you fine‑tune performance versus budget:
- Refresh rate for camera‑friendly performance on stages and in broadcast environments.
- Brightness and grayscale for image quality in your specific lighting conditions.
- Driver IC and configuration for stability and energy efficiency.
For most projects, we can prepare two or three LED display module options:
a higher‑spec configuration for premium requirements, and a cost‑optimized option to help you win competitive tenders while meeting essential performance standards.
If you prefer, you can simply send us your project description, and we will go through these steps for you and return a ready‑to‑use module proposal.
LED Display Module FAQ
It’s the core component of an LED screen, containing LEDs, drivers, and circuits that define resolution, brightness, and performance.
Indoor, outdoor, flexible, GOB/COB high-protection, and right-angle modules.
No, all modules in one display should have the same pixel pitch and specifications.
Yes, all modules are tested for compatibility with major control systems including Novastar, Colorlight, and Linsn.
It depends on viewing distance. Close viewing (1.5-3m) needs small pitch (P1.2-P2.5). Medium distance (6-15m) needs medium pitch (P3.91-P4.81). Long distance (15m+) needs large pitch (P6-P20).you can check our free pixel tool to check more details
Yes. We provide complete documentation. Datasheets. Wiring diagrams. Installation guides. Troubleshooting guides. All free to download.
Yes, we offer full OEM/ODM service — including custom PCB sizes, brightness, and branding.
Yes. Every module goes through 72 hours of intensive aging tests. High temperature. High humidity. Continuous operation. We don’t ship anything that doesn’t pass.
SMD modules are more versatile and cost-effective. COB modules have better protection and fewer dead pixels. Choose SMD for most applications. Choose COB for high-end applications.
Yes. Many of our customers are engineering companies, AV integrators and local LED brands who only purchase LED modules and then combine them with their own cabinets, power supplies and control systems. We can also recommend suitable accessories if you want a complete LED screen solution.
In some cases we can. Please send us clear photos of the front and back of your current LED module, including exact size in millimeters, connector positions and any PCB markings. Our engineers will evaluate compatibility and suggest a direct replacement or an alternative solution if an identical module is no longer available.
Our LED display modules typically include a 2–3 year warranty, depending on the product series and project requirements. During the warranty period, we provide free technical support and replacement parts for confirmed quality issues. We also recommend shipping spare LED modules and key components with each order to support fast local maintenance.
For standard LED display module models, the MOQ is usually one pcs. For special or customized configurations, we will confirm the MOQ based on your pixel pitch and component selection. Sample orders are available if you want to test brightness, color and compatibility before placing a larger order.
Standard indoor and outdoor LED module models usually require 10–15 days for production after order confirmation and deposit. Special configurations or large quantities typically need 20–30 days. We will always share a detailed production and shipping schedule so you can plan installation with your project team.
Tell Us Your LED Module Needs and Get a Quote
Whether you are building a new LED video wall, upgrading an existing LED screen or preparing spare LED modules for long‑term service contracts, we are ready to support you as a factory‑direct LED display module supplier.
